SMC/SPA series High-current Snubber Capacitors

(0 reviews)

Price
$20.00 /Piece
Quantity
(1000 available)
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.

RELATED CAPACITOR SERIES


PMS PPS 带标.png


DMC seriesPMS/PPS seriesCustomization
Product Overview

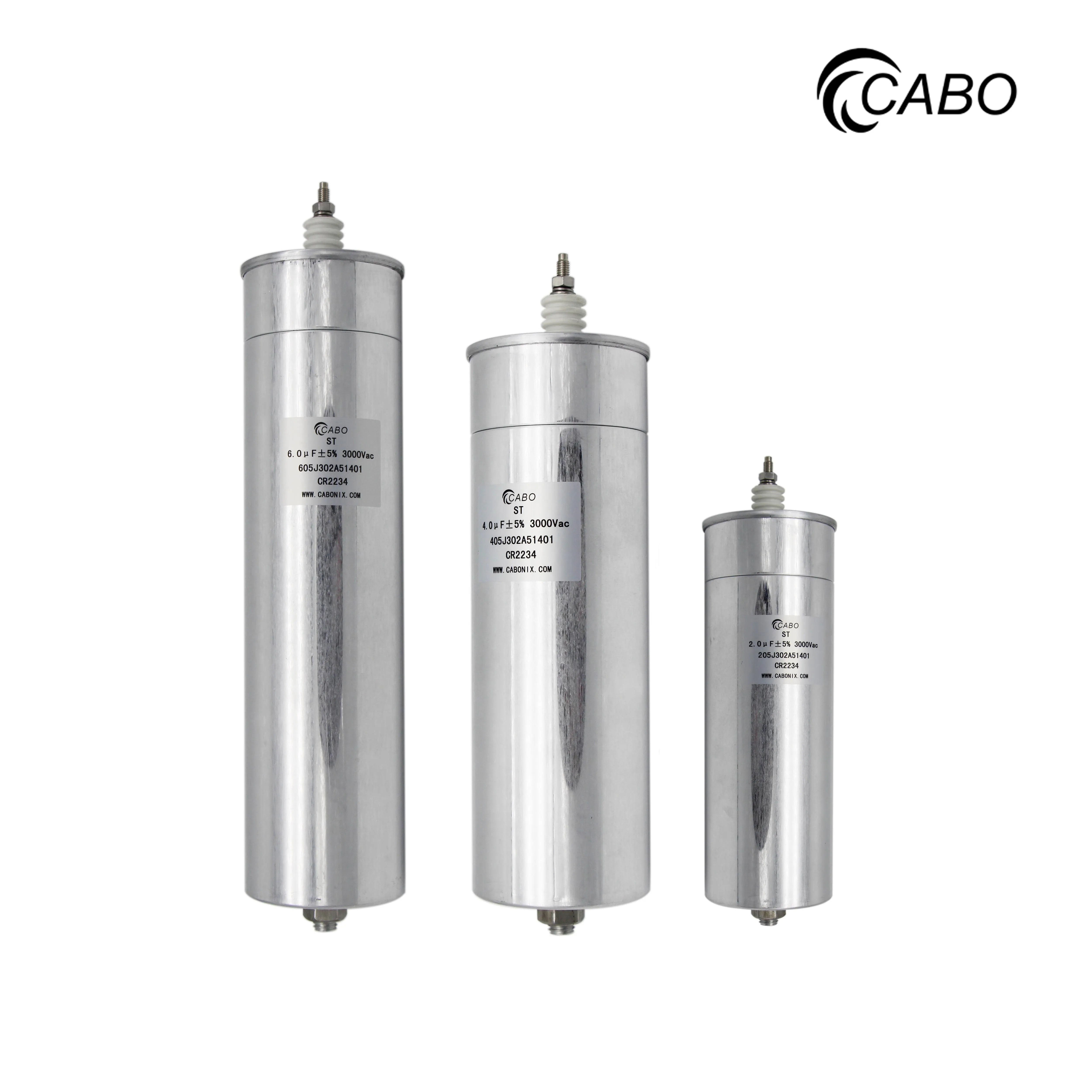

SMC/SPA Series Capacitor

SMC/SPA series is special designed for the filtering, over-voltage protection, and damping absorption of semi-conductors,
rectifiers, and thyristors in power electronic equipment. The self-healing capacitor elements are enclosed in a cylindrical
aluminum/plastic case sealed with PU resin. They are made of metallized PP film, This enables the unit to carry high peak and high inrush currents with low self-inductance and series resistance. Dry type design, environmentally friendly and self-healing, support both horizontal and vertical installation.
Detailed product Description
Product Name:
SMC/SPA Series Capacitor

Features:
Aluminum case
High over-voltage and over-current
Self-healing
Dry type


Application:
▪ Snubbers for SCRs, GTOs
▪ SCR commutation
▪ Harmonic filters
▪ SVG, SVC
PRODUCT SPECIFICATIONS
Electrical Parameter
Capacitance Range
1.0~50μF
Operating Temperature
-25℃~85℃
Capacitance Tolerance
±5%(J);±10%(K)
Rated Voltage (Un)
300~6000Vac (No over 8H/day on 1.1Un)
Test voltage between terminals (Utt)
1.5Unac for 10s
Fire resistance
UL94-V0
Expected Life
100,000 h (ΘHOTSPOT ≤ 55°C)
Max.Altitude
<2000m

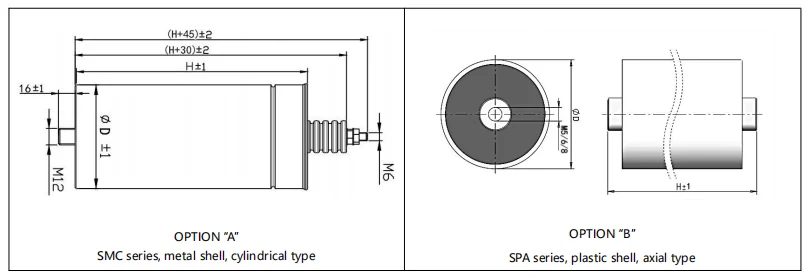

Outline Drawing
Common Design

Customization available

Note: The above parameters are for reference only. Please refer to the specifications for specific parameters.
