PPA Series - High Voltage Fast Discharge Pulse Grade Medical Capacitor for ESWL Equipment

(0 reviews)

Price
$5.00 /Pieces
Quantity
(50 available)
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.

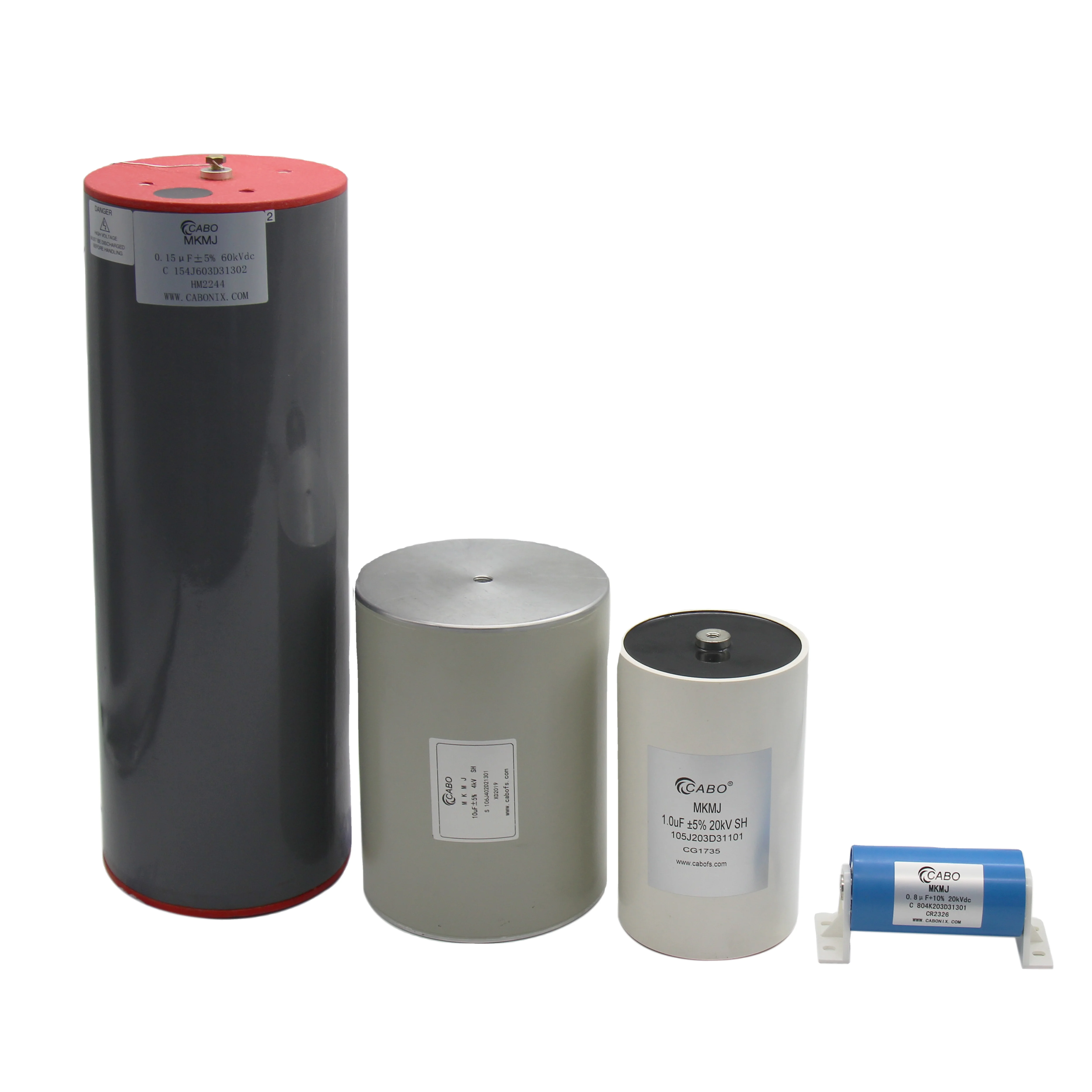

RELATED CAPACITOR SERIES



PPCPPAPMS/PPS

Product Overview

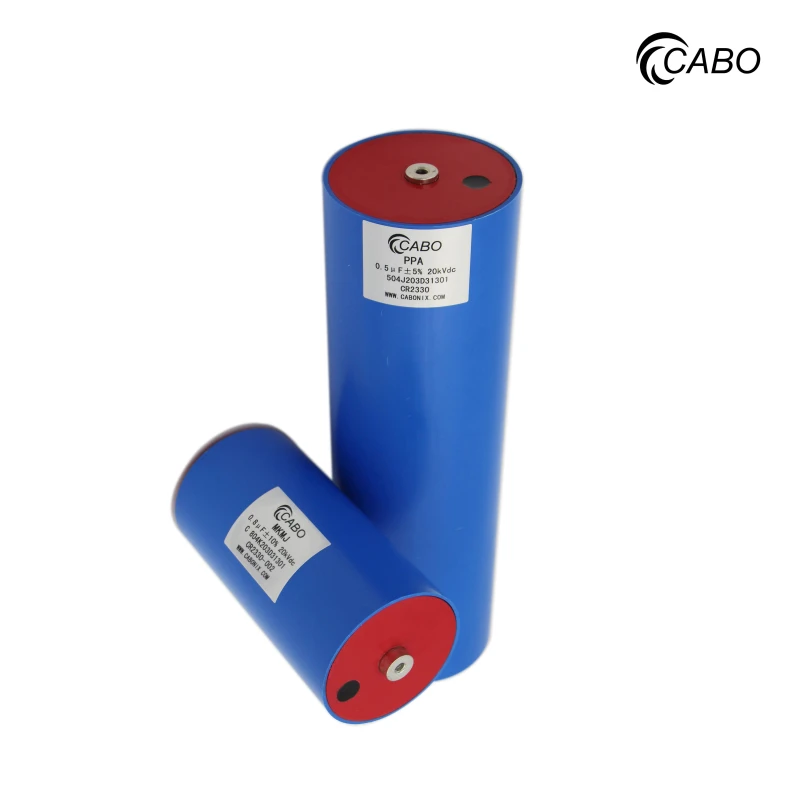

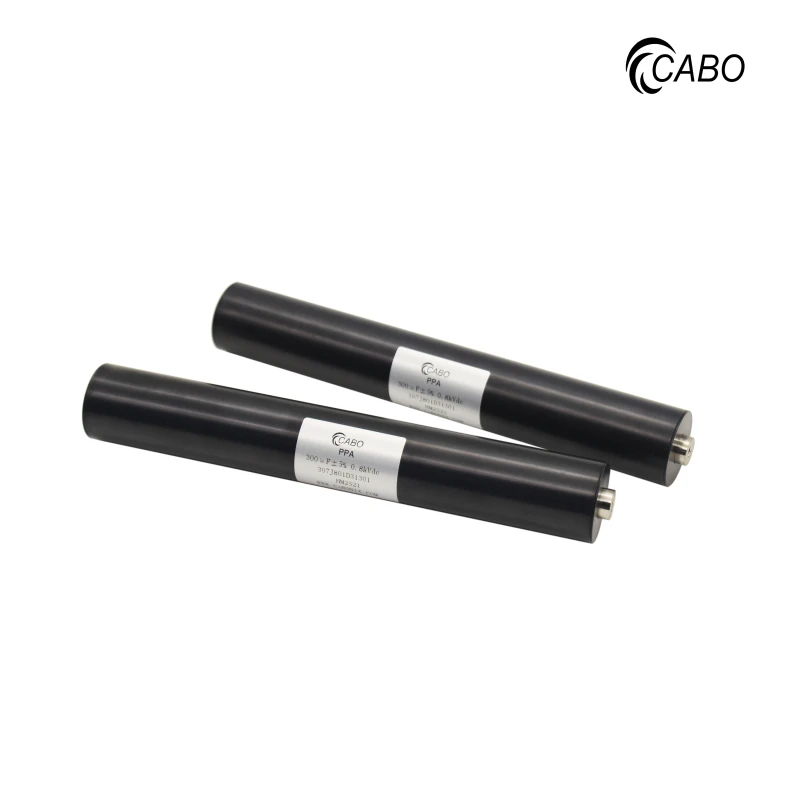

PPA Series Capacitor

Current, voltage, size, mass and terminations are matched to the customer’s requirement and application. The design and
manufacture of CABO energy storage capacitors that are not limited to a catalogue range. High lifetime expectancy and high reliability is achieved by using ultra low defect design, highly standardized process, Metallized polypropylene dielectric film incorporating an extended working temperature range and controlled self-healing capability. Elements are wound on the latest precision edge controlled automatic winding machines. High conductivity copper is used for low resistance internal connections. Capacitors are finished in powder coated corrosion free metal or insulated cases and filled with dry leak free resin. A very high specific energy level with 100% test specifically to meet the reliability demands.
Detailed product Description
Product Name:
PPA Series Capacitor

Application:
Energy storage and discharge in circuit
Medical equipment/ Insulation tester
High-voltage tester/ Impulse current generator
Impulse voltage generator/ Magnetizing

Features:
Dry type structure
High over-voltage
Low ESL/ ESR
Self-healing
Plastic/ Metal/ Tape shell, resin sealing

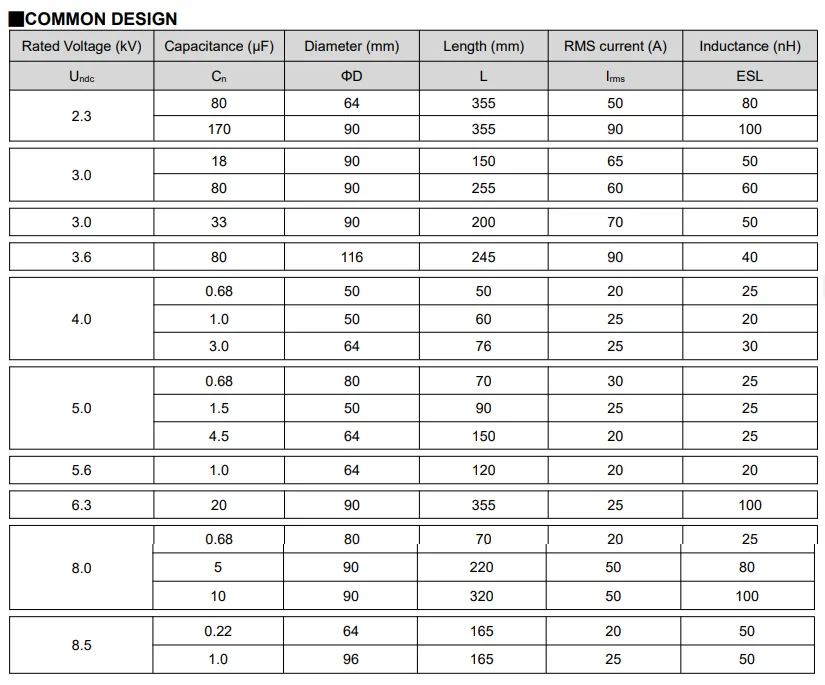

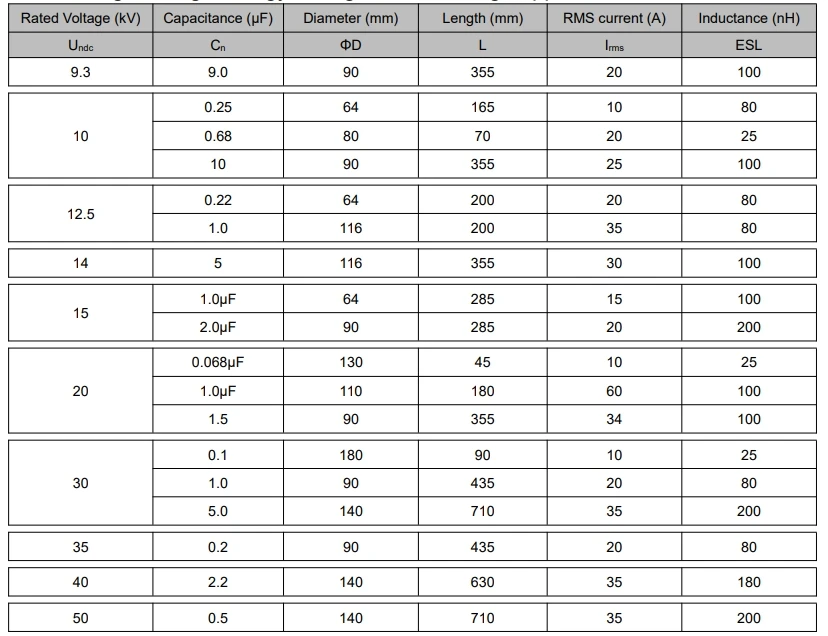

PRODUCT SPECIFICATIONS
Electrical Parameter
Capacitance
0.068~200μF
Operating Temperature
-40℃~+70℃
Capacitance Tolerance
±5%(J);±10% (K)
Rated Voltage
1.2kV~50kV. DC
Test Voltage between Terminal
1.5Un 10s
Insulation resistance
R*C≥5000S(100VDC 60S)
Max.Altitude
<2000m
Max torque of terminals
6Nm
Flame resistance
UL 94V-0
Lifetime Expectancy
≥100,000 Hours (Un,≤70℃)/5000 shots

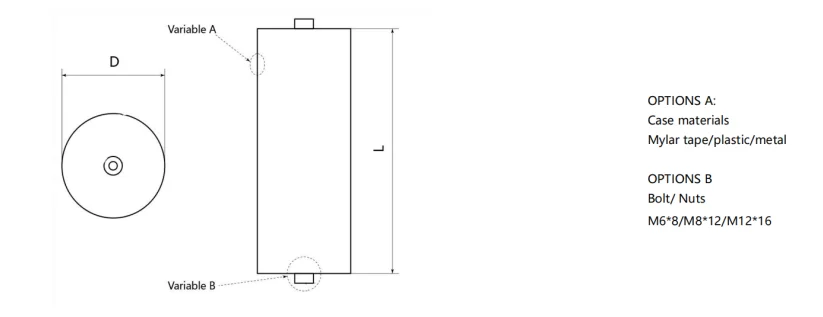

Outline Drawing

Customization available

Note: The above parameters are for reference only. Please refer to the specifications for specific parameters.
Certified Patent

High-Voltage Pulse Capacitor


Ultra-High Voltage Capacitor


Dc Supported Explosion-Proof Capacitor
