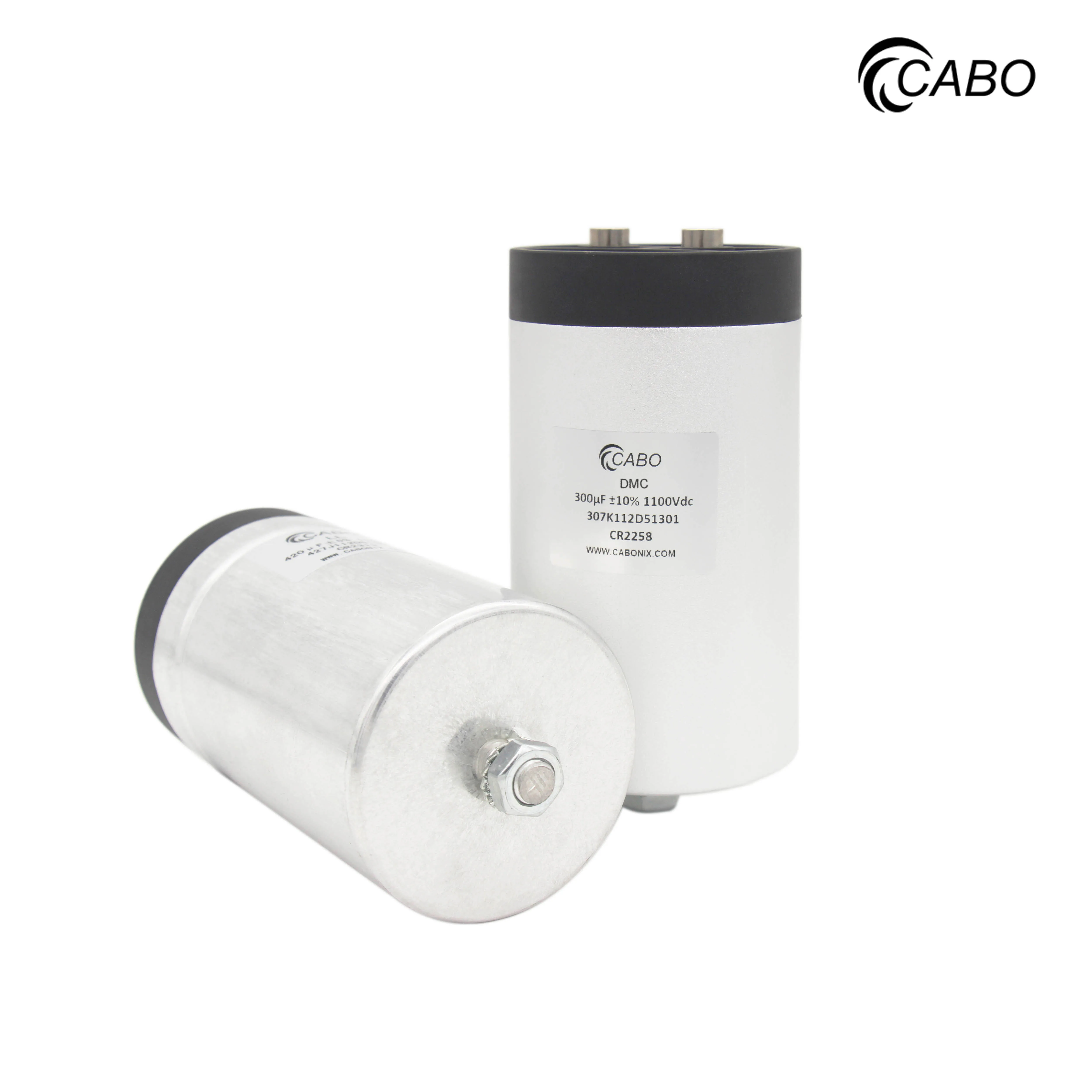

DMC series - High voltage inverter DC link Film capacitor

(0 reviews)

Price
$10.00 /Pieces
Quantity
(50 available)
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.

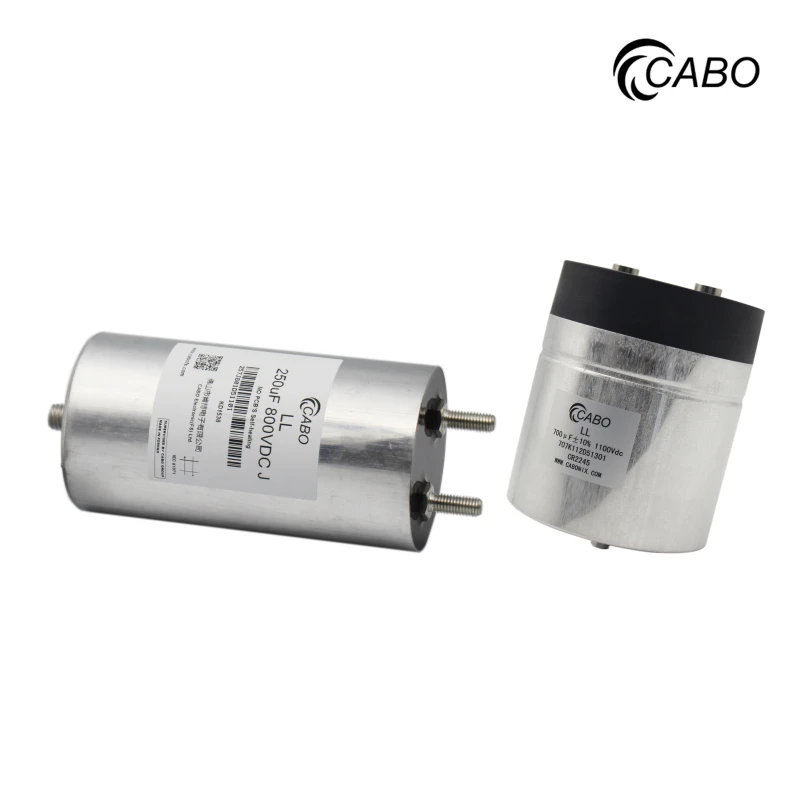

RELATED CAPACITOR SERIES



SPBDMCDPC
Product Overview

DMC Series Capacitor

DMC is a metal cylindrical capacitor designed for DC link and DC filtering applications. CABO employs the most advanced metallized
film technology to ensure long life and high reliability in DC link applications. This series combines high capacitance and
extremely high ripple current capability, which are essential for today's inverter designs in wind energy, solar power, fuel
cells, UPS systems, and more. Its low inductance design, high voltage terminations, and ultra-high ripple current capability are
tailored to meet your specific application requirements.
Detailed product Description
Product name:
Dc link/dc filter capacitor

Application:
Wind power,solar power
Frequency converter
Power supply, UPS system
Electric vehicle
EV/GTO snubbering

Features:
Dry type structure
Self-healing
For low inductance applications
Aluminum case with resin sealing

PRODUCT SPECIFICATIONS
Electrical Parameter

Capacitance
10~3000μF
Temperature
-40℃~+85℃ (case)
Capacitance Tolerance
±5%(J);±10% (K)
Rated Voltage
400~5000V.DC
Test Voltage between terminals
1.5Un 60s
Max.Altitude
<2000m
Insulation Resistance
R*C≥5000S(100VDC, 60S)
Flame Resistance
UL 94V-0
Max torque of terminals
6Nm
Failure
50FIT

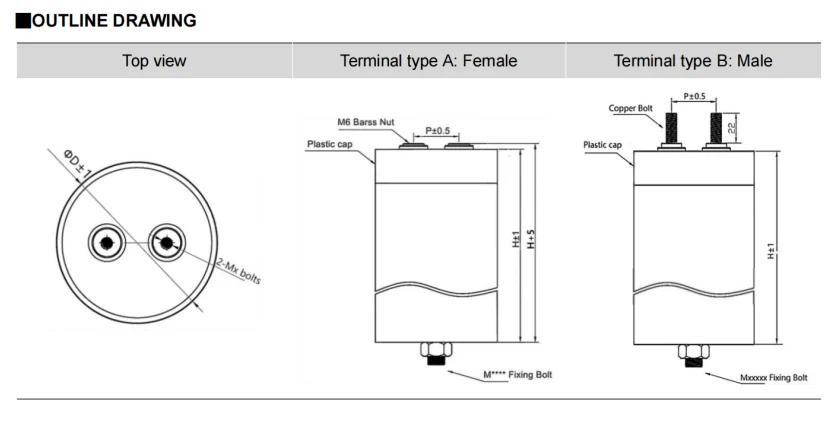

Outline Drawing

Customization available

Note: The above parameters are for reference only. Please refer to the specifications for specific parameters.
