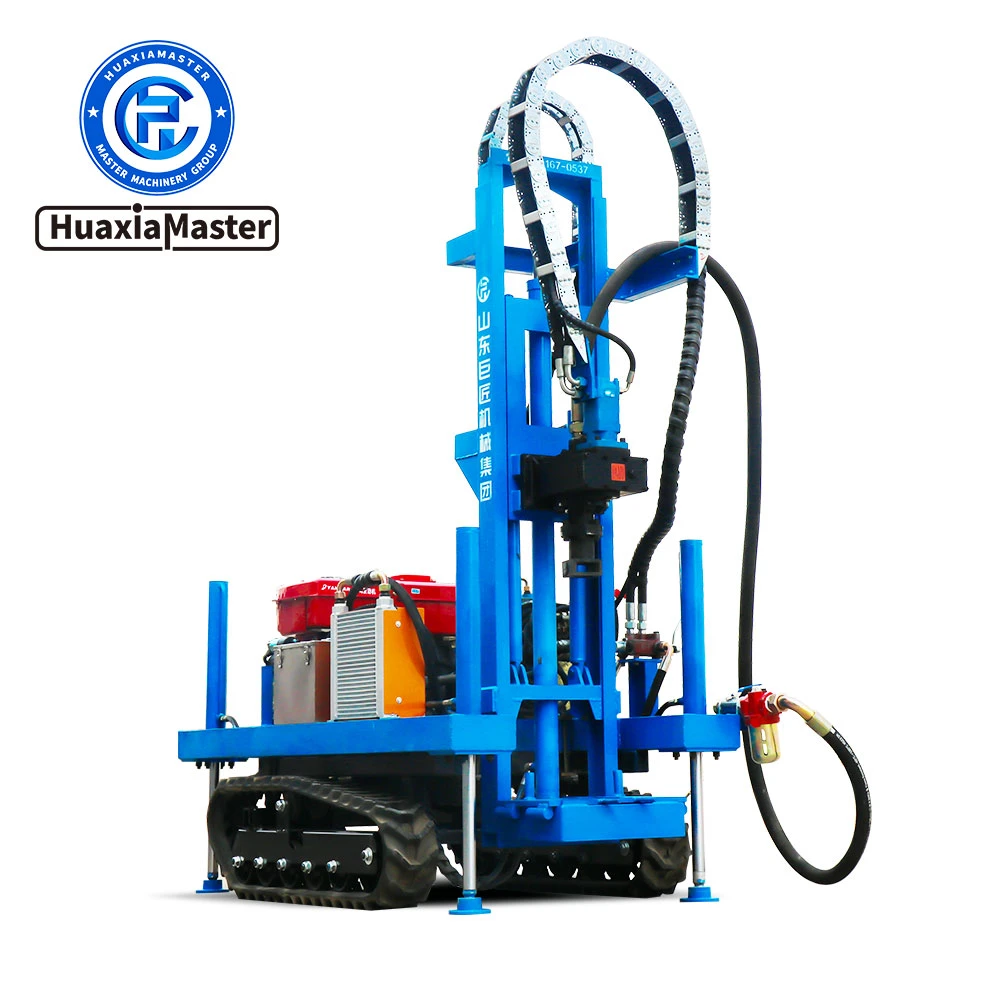

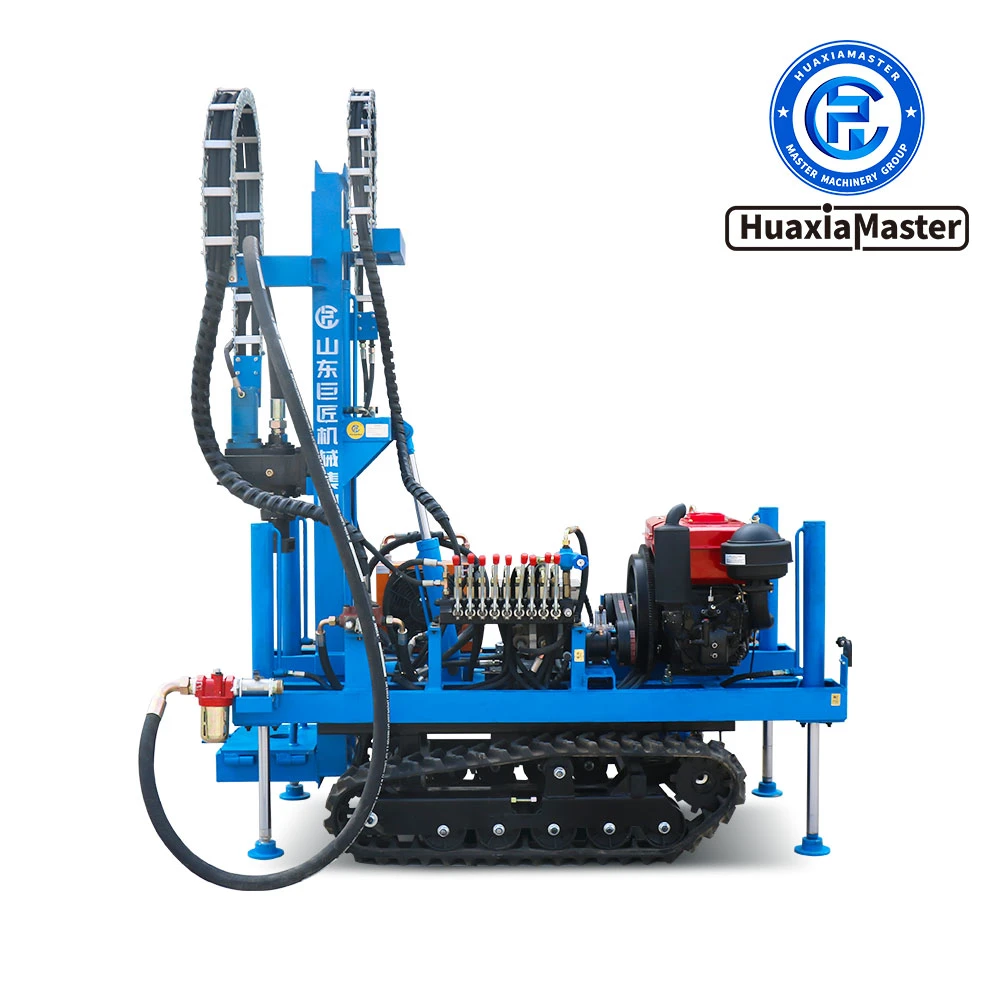

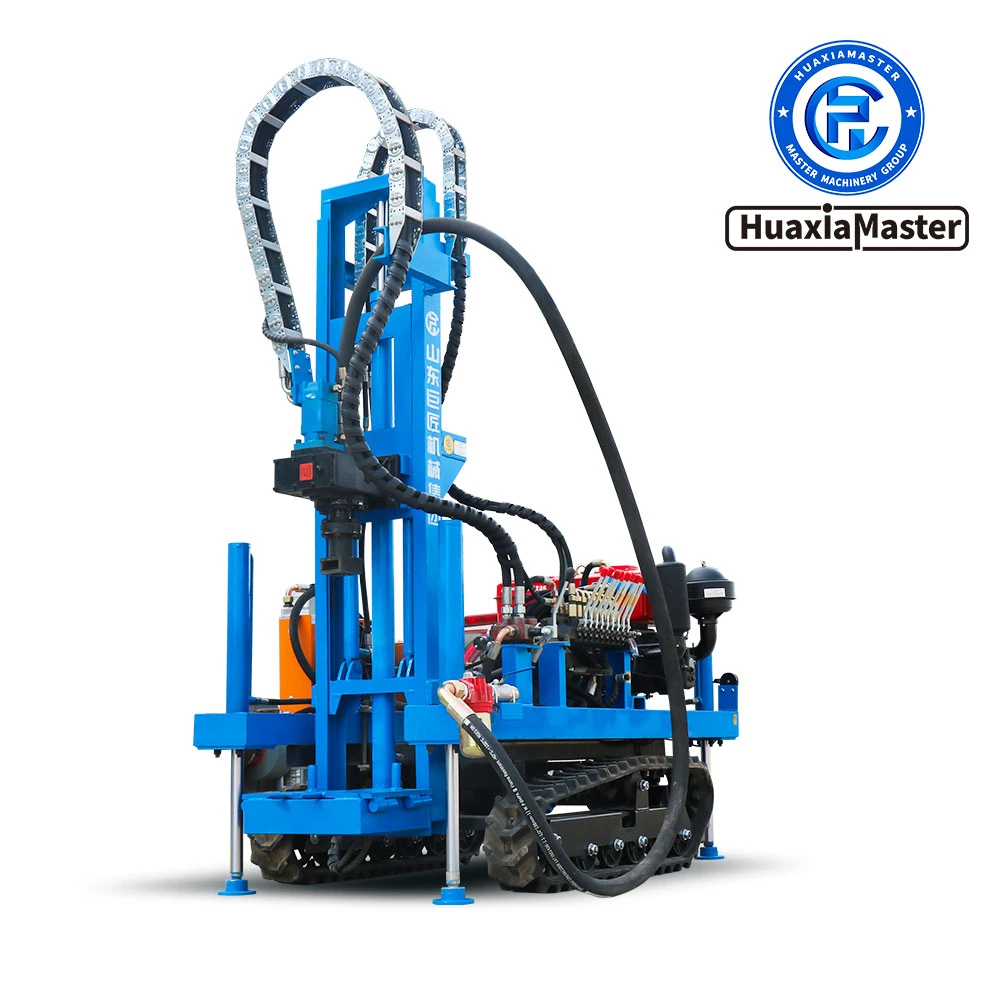

1. Introduction to KQZDX Series Crawler Type Air-hydraulic Linkage Down-the-hole Drilling Rig

KQZDX series crawler air-hydraulic linkage down-the-hole drilling rig is a highly efficient and flexible small open-pit crawler rock drilling equipment. It uses compressed air to drive the impactor to generate high-frequency impact force on the drill bit. At the same time, the hydraulic motor drives the drill bit to rotate at high speed to achieve efficient rock crushing. It can adapt to a wide range of strata from soft rock to extremely hard rock. It is mainly used in open-pit mine blasting holes, large-scale stone engineering, water conservancy and hydropower construction and other fields.

2. Features of KQZDX Series Crawler Type Air-hydraulic Linkage Down-the-hole Drilling Rig

2.1 Equipped with crawler walking chassis, no need for manual movement, making it more convenient to move the machine.

2.2 The drilling rig is advanced and lifted by hydraulic cylinder, which makes the work more efficient.

2.3 The drilling frame angle can be adjusted to achieve 35-90° multi-angle drilling construction.

2.4 The power head can rotate forward, reverse and inching to meet various construction requirements.

2.5 The drilling rig is simple and easy to learn, and novices can quickly get started, reducing dependence on manual labor.

2.6 Made of high-strength materials, it has good wear resistance and impact resistance, reducing the cost of repairing and replacing equipment.‌

3. Parameters of KQZDX Series Crawler Type Air-hydraulic Linkage Down-the-hole Drilling Rig

Category Specifications

Drilling rig category

Crawler Type Air-hydraulic Down-the-hole Drilling Rig

Drilling rig model

KQZDX-150Y

KQZDX-180Y

KQZDX-200Y

KQZDX-300Y

Performance parameters

Applicable rock

F=6~20

F=6~20

F=6~20

F=6~20

Drilling diameter

50~200mm

50~200mm

50~200mm

50~200mm

Drilling depth

20-50m

20-50m

20-50m

50m

Drilling speed

0-140r/min

0-140r/min

0-140r/min

0-140r/min

Maximum propulsion force

2000N

2000N

2000N

6000N

Advancement

1500mm

1500mm

1500mm

2500mm

Lifting height

2800mm

2800mm

2800mm

3800mm

Machine parameters

Chassis

Rubber crawler hydraulic walking chassis

Rubber crawler hydraulic walking chassis

Rubber crawler hydraulic walking chassis

Rubber crawler hydraulic walking chassis

Machine power

Motor

Motor

Single cylinder 680 diesel engine

Four-cylinder diesel engine

power

11kW/380V

15kW/380V

23.5kW

51kW

Vehicle weight

920KG

950KG

980KG

1500KG

Machine size

2300*1100*1750mm

2320*1100*1750mm

2350*1100*1770mm

2400*1400*1900

Hydraulic outriggers

Four pieces(Optional)

Four pieces(Optional)

Four pieces(Standard)

Four pieces(Standard)

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
