KY Series Metal Mine Prospecting Drilling Rig

1.Introduction to KY Series Metal Mine Prospecting Drilling Rig

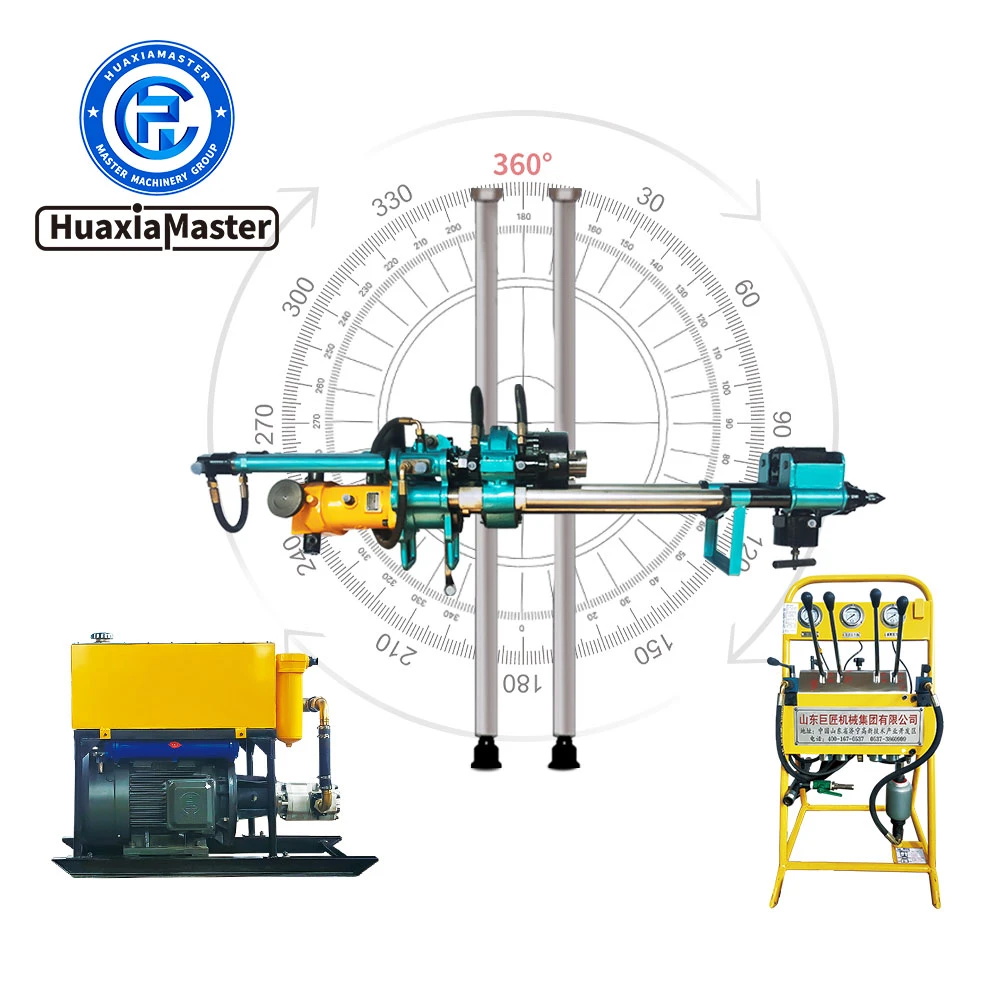

KY series fully hydraulic exploration drilling rig is a kind of exploration equipment used in mine tunnel or surface, which has been widely used in the field of metal mines. When the drill is used in the tunnel, it can be drilled 0-360 degrees on the column and 0-90 degrees on the surface drilling frame.‌

2.Features of KY Series Metal Mine Prospecting Drilling Rig

2.1 The drilling rig is composed of the main engine, pump station and operation platform, with flexible layout.

2.2 Small size, light weight and convenient installation.

2.3 Good decomposition and convenient transportation.

2.4 It can be put into production in the original tunnel, which plays a protective role in the overall structure of the mine.

2.5 Adopt light feeding frame, clamp, power head rotary drilling, oil cylinder pulling and sending drilling tools, which can save heavy derrick.

2.6 Mechanical principle twist and unload drill pipe, reduce labor intensity of workers and improve work efficiency.

2.7 It has the function of linkage. It can be operated in a centralized way through the control console. It is simple and safe, and it can adjust speed infinitely.

2.8 The Φ 33 and Φ 43 drill pipes can be used in the same machine, and the replacement is con.

3.Parameters of KY Series Metal Mine Prospecting Drilling Rig

Model

KY150

KY200

KY250

KY300

Borehole diameter

36.5mm/46.5mm

Underreamer dia

37mm/47mm

Corebarrel dia

35mm/45mm

Drill pipe dia

33mm/43mm

Rock  coredia

20mm/30mm

Horizontal drillng depth

150m/120m

200m/160m

250m/200m

300m/240m

Drilling angle

Tunnel:0-360°;Surface:0-90°

Pumping station power

18.5kW

22kW

30kW

37kW

Weight

Main engine

160kg

260kg

380kg

380kg

Operating table

58kg

60kg

60kg

60kg

Pumping station

275kg

280kg

430kg

450kg

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
