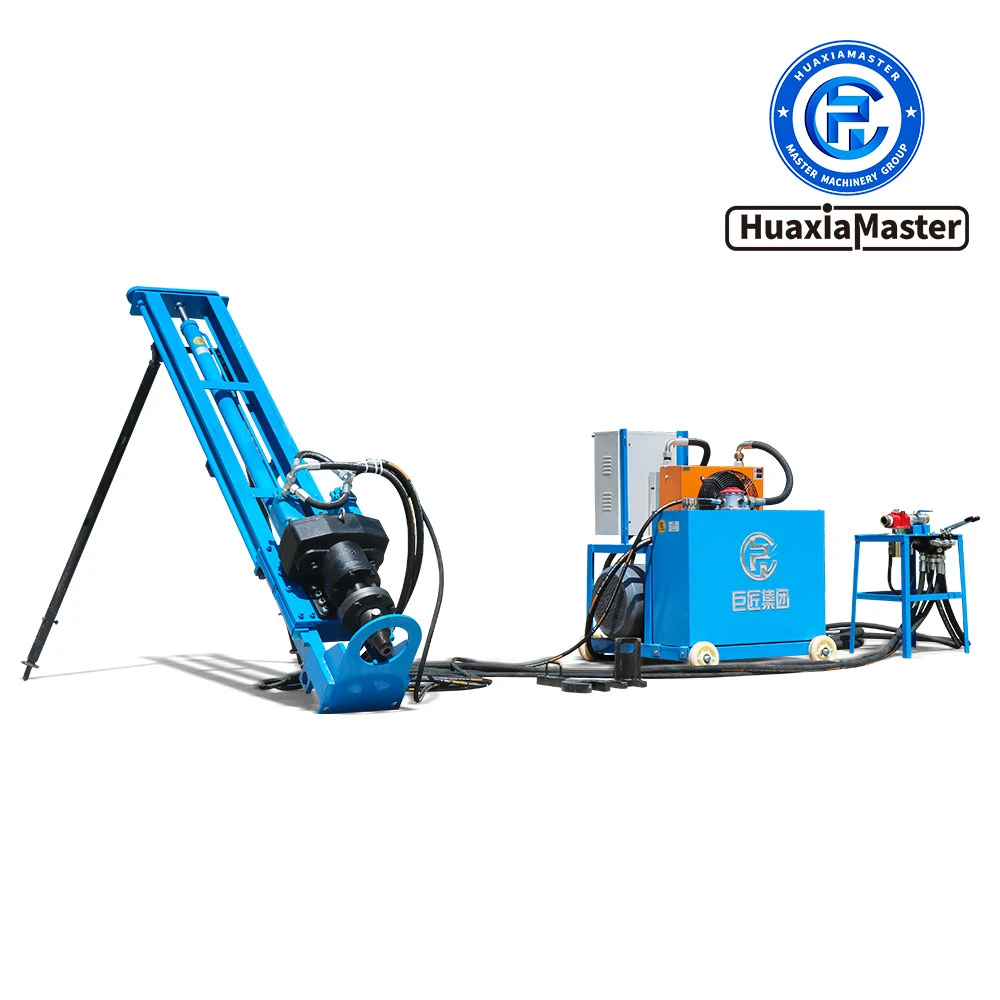

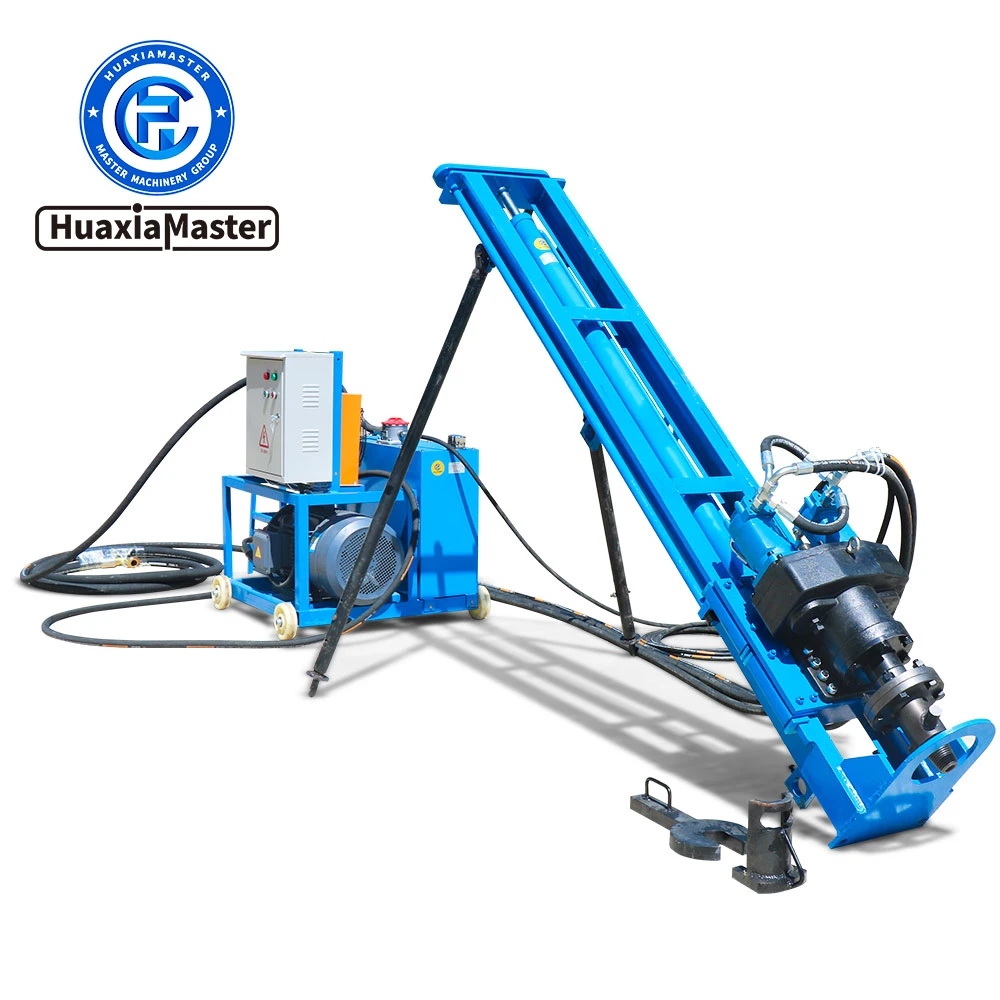

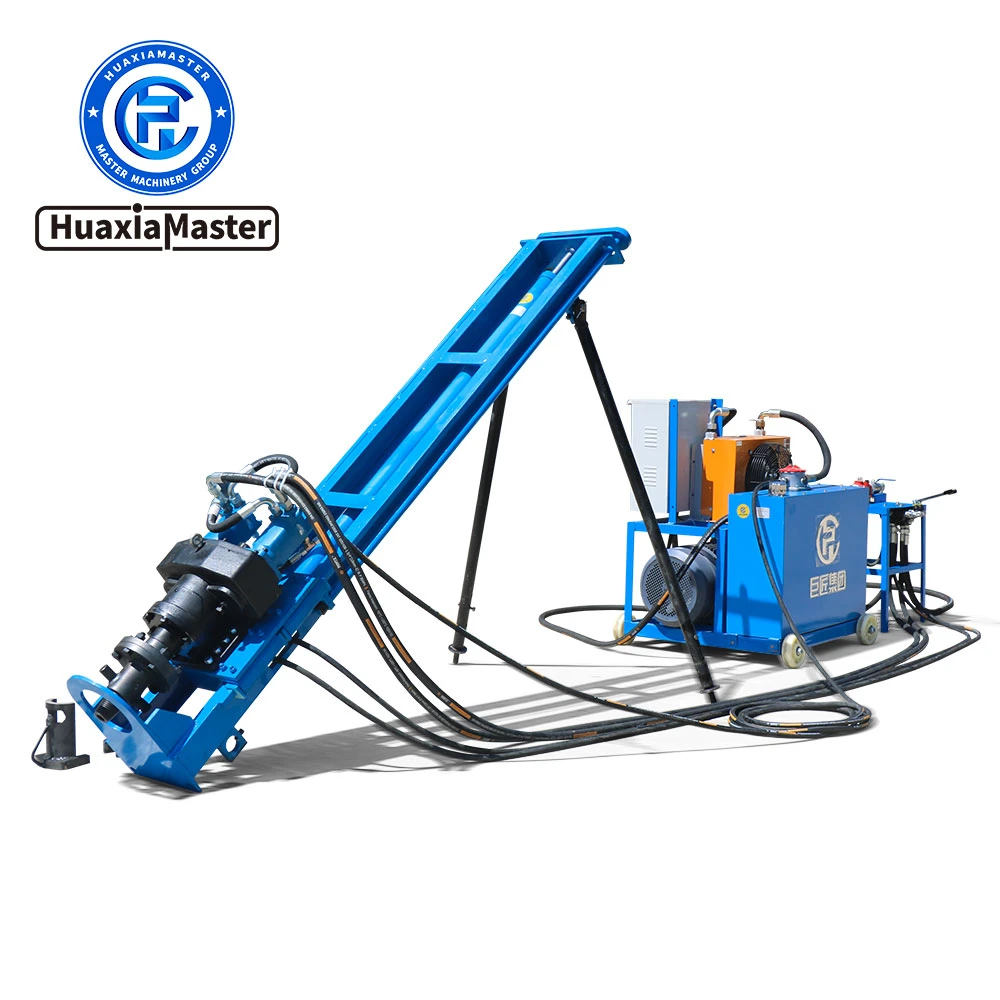

1. Introduction to KQZ Series Air-electric Down-the-hole Drilling Rig

The KQZ series air-electric down-the-hole drilling rig is a highly efficient rock drilling equipment. It uses compressed air to drive the impactor to generate high-frequency impact force on the drill bit. At the same time, the electric motor drives the drill bit to rotate at high speed to achieve efficient rock crushing. It is an efficient and reliable choice for hard rock deep hole operations. It is mainly used in open-pit mine blasting holes, large-scale stone projects, water conservancy and hydropower construction and other fields.

2. Features of KQZ Series Air-electric Down-the-hole Drilling Rig

2.1 High-efficiency drilling: The impact drilling method is adopted, and the impact energy directly acts on the drill bit at the bottom of the hole, with small energy transfer loss, which greatly improves the drilling efficiency.

2.2 Good drilling quality: the drilled hole is straighter, the hole wall is smoother, and the drilling accuracy is higher.‌

2.3 Strong adaptability: It can adapt to a wide range of strata from soft rock to extremely hard rock.

2.4 Simple operation: The drilling rig is easy to operate and novices can quickly get started, reducing manual dependence.‌

2.5  Durable: Made of high-strength materials, it has good wear resistance and impact resistance, can operate stably for a long time, and reduces the cost of repairing and replacing equipment.‌

3.Parameters of KQZ Series Air-electric Down-the-hole Drilling Rig

Drilling rig model

KQZ-70D

KQZ-100D

KQZ-120D

Drilling diameter

50~80mm

65~150mm

76~300mm

Drill pipe

φ42

φ50/φ60

φ60/φ76

Drilling depth

10~15M

20~25M

30~50M

Electric motor power

3kW

4kW

7.5kW

Drill tool rotation speed

112r/min

90r/min

90~110r/min

Power head output torque

600N.m

800N.m

1200N.m

Air consumption

3.5~4.5m³/min

6~8m³/min

13~23m³/min

Thrust cylinder diameter

90mm

150mm

200mm

Host length

1524mm

2400mm

1980mm

Host weight

148kg

224kg

550kg

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
