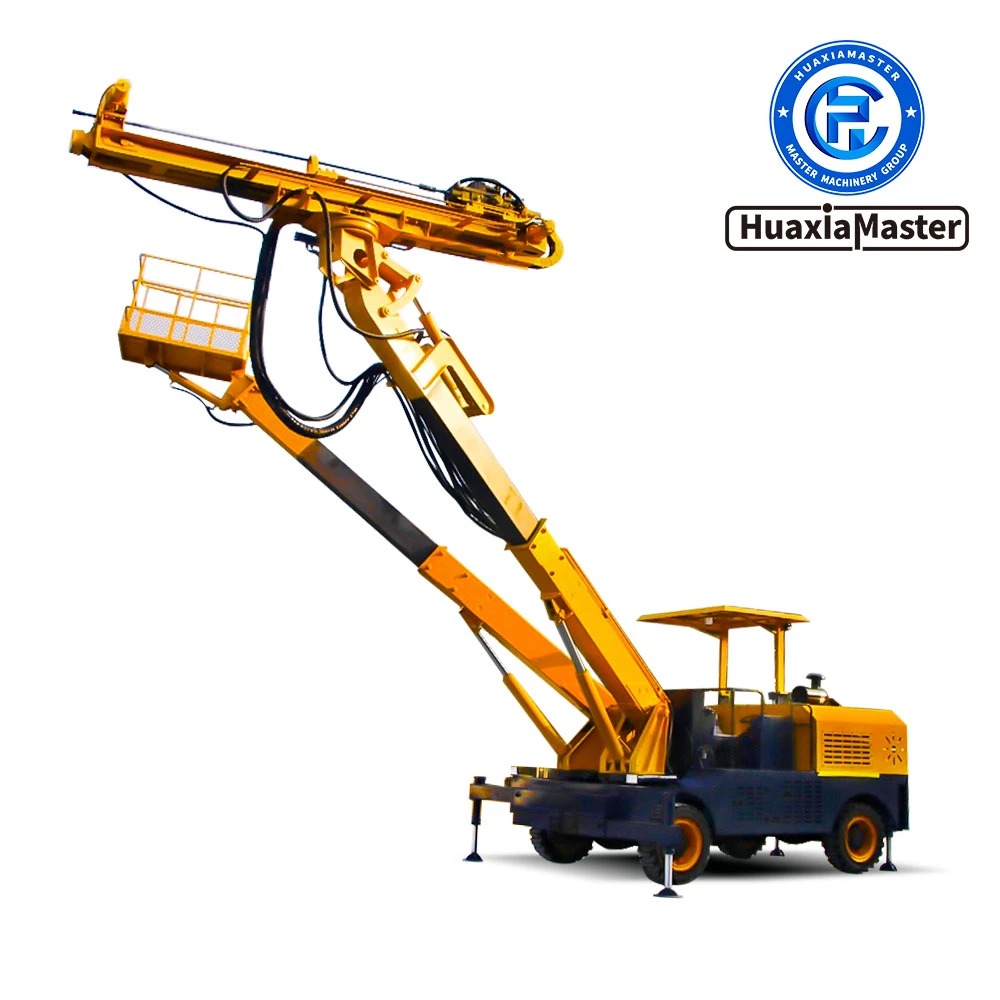

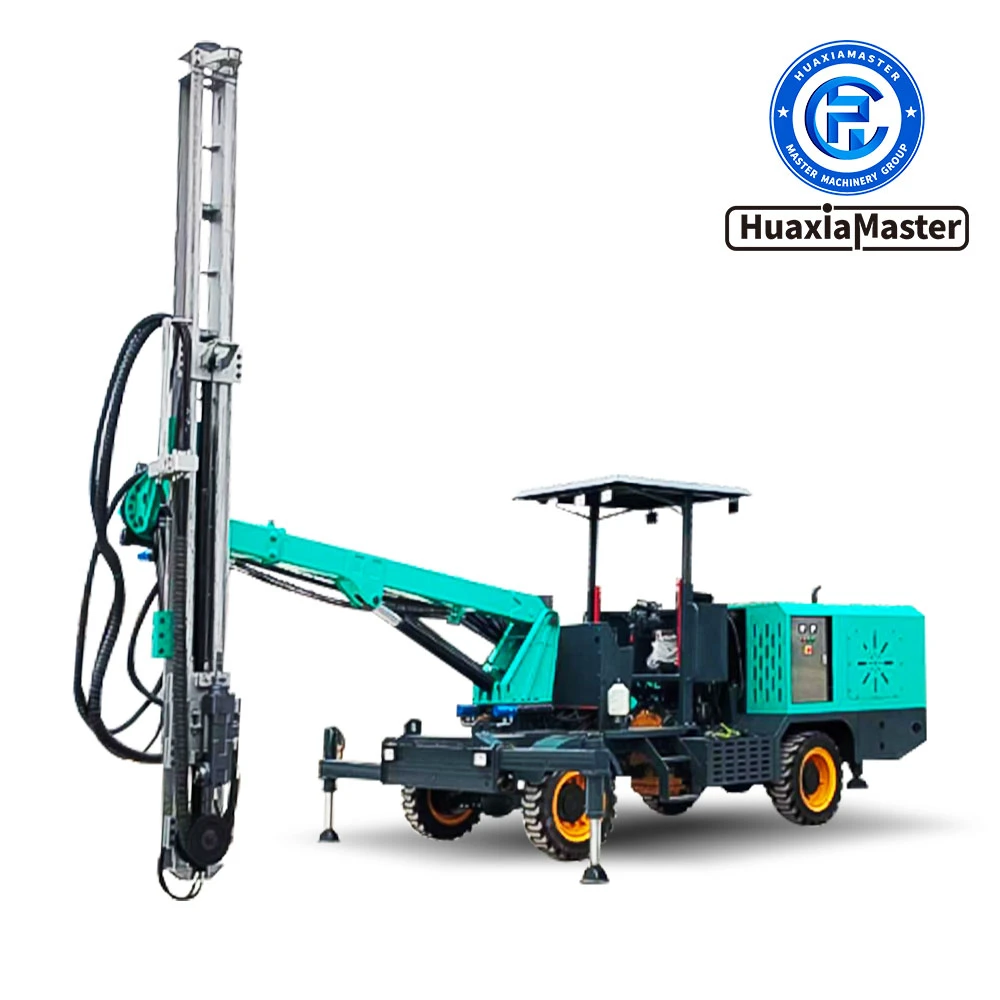

1. Introduction to LSMGZ Series Wheeled Tunnel Anchor Drilling Rig

The wheeled tunnel anchor drilling rig is a tunnel-specific engineering machinery equipment developed based on the construction needs of drilling and anchoring operations in tunnels. It is mainly used to accurately drill holes in the tunnel surrounding rock and assist in the installation of anchor rods, anchor cables and other supporting structures, and cooperate with grouting to enhance rock stability, prevent collapse, and ensure construction safety. The excellent operability combined with powerful power significantly improves construction efficiency and operation accuracy, and has been recognized by the majority of construction units.

2. Features of LSMGZ Series Wheeled Tunnel Anchor Drilling Rig

2.1 Omnidirectional drilling: The drilling rig can rotate 360°, enabling all-round anchoring operations in the tunnel.

2.2 Diversified operating modes: Equipped with high-performance dual hydraulic power heads or automatic impact rock drill heads to achieve diversified operations.

2.3 Configuration diversity: The basket arm can be configured to provide a lifting platform for auxiliary work such as charging, clearing hazards, hanging nets, etc., reducing the tedious work of scaffolding and greatly improving the safety and efficiency of construction.

2.4 Easy to move: It adopts tire-type walking method, which makes it more convenient to move to other places.‌

2.5 Strong adaptability to terrain conditions: Suitable for various soil and rock conditions, showing strong environmental adaptability.

3. Parameters of LSMGZ Series Wheeled Tunnel Anchor Drilling Rig

Drilling rig specifications

LSMGZ-8

LSMGZ-8S

Performance parameters

Lifting height

8m

8m

Drilling diameter

50~300mm

50~300mm

Anchor diameter

45~89mm

45~89mm

One-time push depth

4m/customizable

4m/customizable

Ways of advancement

Hydraulic motor + chain

Hydraulic motor + chain

Machine parameters

Working arm configuration

1 drill arm

1 drill arm + 1 basket arm

Drill rack rotation angle

360°

360°

Power head

Double hydraulic power head

Hydraulic rock drill

Double hydraulic power head

Hydraulic rock drill

Walking power

Yunnei 490 diesel engine

Yuchai 4108 diesel engine

Power

37kW

91kW

Walking style

Four-wheel drive front and rear axle travel

Four-wheel drive front and rear axle travel

Hydraulic oil pump motor

55kW

55kW

Hydraulic Radiator

Large air cooling radiator * 2

Large air cooling radiator * 2

Solid tires

880.295-20/7.5

880.295-20/7.5

Hydraulic outriggers

4 pieces;

The front legs can be extended and retracted 1.2 meters in both directions.

4 pieces;

The front legs can be extended and retracted 1.2 meters in both directions.

Machine size

10.1*2.25*2.5m

10.1*2.25*2.5m

Machine weight

10T

12T

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
